Volkswagen Golf Service & Repair Manual: Removing and installing impact bar


Volkswagen R GmbH, optional equipment, “R Line” and “R”
Removing

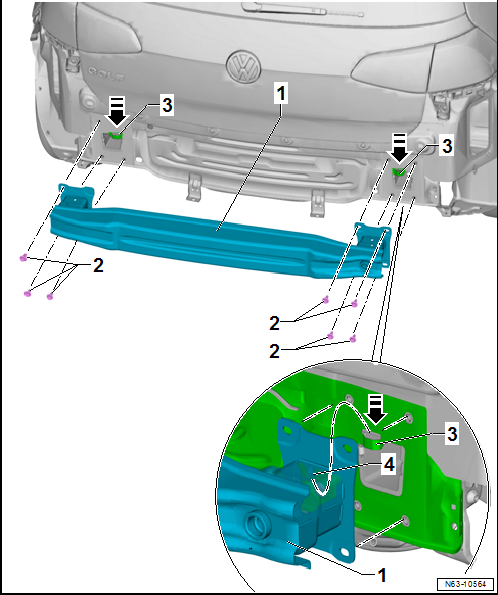

Removing and installing impact bar

–  Remove bolts -2-.
–  Lift impact bar -1- upwards -arrows- out of tabs -3- in cross panel.


Installing


Removing and installing impact bar

–  Guide guides -4- of impact bar -1- from top to bottom -arrows- into tabs -3- in cross panel.
–  Tighten bolts -2-.
Specified torques
  → Chapter „Assembly overview - impact bar“

Repairing bumper cover

Note

If bumper cover is damaged, determine whether plastic can be repaired before renewing bumper.

Description under: → General Information; Body Repairs, General Body Repairs

Removing and installing bumper cover
