Volkswagen Golf Service & Repair Manual: Removing and installing ignition key withdrawal lock solenoid -N376-

Volkswagen Golf Service & Repair Manual / Electrical system / Lights, lamps, switches outside / Steering column switch module / Removing and installing ignition key withdrawal lock solenoid -N376-

Removing
–  Remove lower steering column trim → General body repairs, interior; Rep. gr.68.

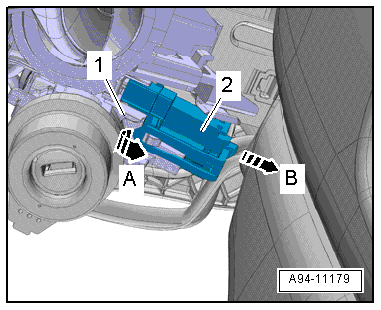

–  Release retaining clip -arrow A-, and pull ignition key withdrawal lock solenoid -N376--2- off steering lock housing -1--arrow B-.
Installing
Installation is carried out in the reverse sequence.
