Volkswagen Golf Service & Repair Manual: Removing and installing ignition key battery

Removing

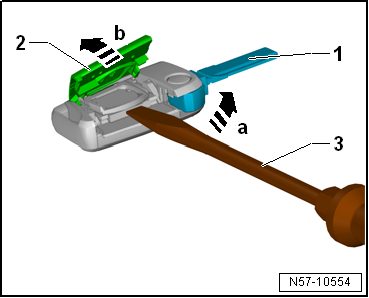

–  Folding out key bit -1--arrow a-.
–  Use a small screwdriver -3- to raise the cover of battery compartment -2--arrow b-.


Removing and installing ignition key battery

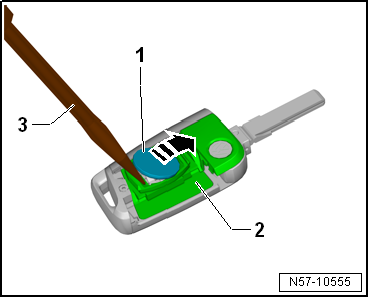

–  Use a small screwdriver -3- to lift battery -1- out of battery compartment -2--arrow-.
Installing
  Note
  Before installing battery, always press any key once.
  This resets the transmitter unit, so that it can now recognize a new battery.
Ensure correct polarity and mounting position when installing battery. The positive pole is marked.


Removing and installing ignition key battery

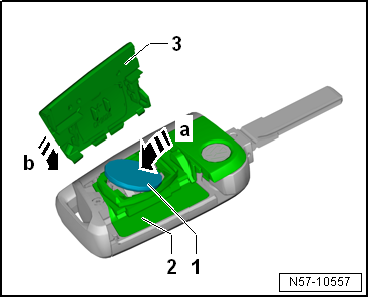

–  Insert battery -1- into battery compartment -2- by pressing slightly -arrow a-.
–  Assemble cover of battery compartment -3- and transmitter unit -arrow b-.
–  The ignition key must be synchronised now → Anchor.
Synchronizing ignition key
  N57-10557

Removing and installing ignition key battery

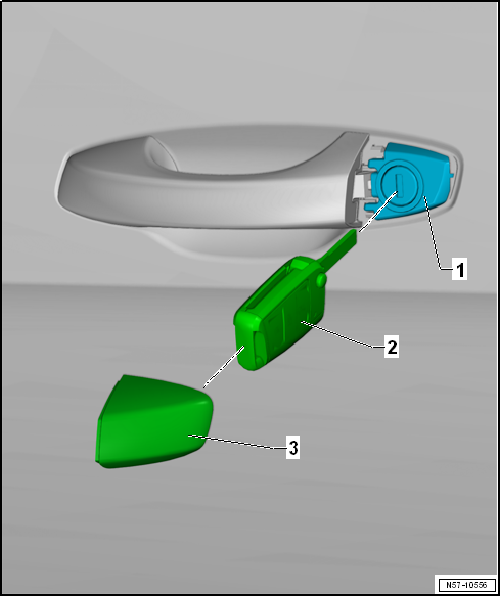

–  Remove cover cap for lock cylinder -3- → Chapter.
–  Hold ignition key -2- on lock cylinder -1-, and press “Open” button.
–  Unlock vehicle with the ignition key -2- via lock cylinder -1- within a minute.
