Volkswagen Golf Service & Repair Manual: Removing and installing handle for seat height adjustment

Volkswagen Golf Service & Repair Manual / General body repairs, interior / Seat frames / Front seats / Removing and installing handle for seat height adjustment

  Note
The handle for seat height adjustment can be renewed with front seat installed.
Removing
  Note
  •   Remove handle for seat height adjustment as described. Do not knock handle for seat height adjustment off lever.
  •   If the tab is damaged when the handle for seat height adjustment is removed, the handle cannot be refitted. The handle for seat height adjustment has to be renewed then.

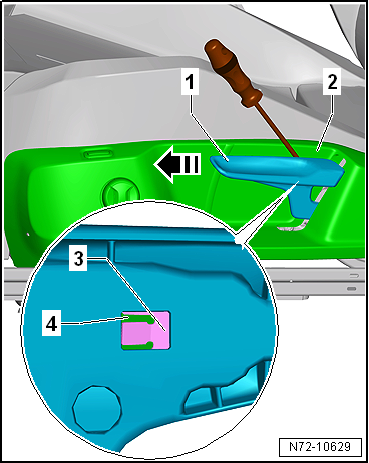

–  Pull handle for seat height adjustment -1- as far as possible upwards and hold it in this position.
–  Guide a small screwdriver through handle for seat height adjustment -1- and trim -2- up to catch -3-.
–  Push locking lug -3- inwards using screwdriver.
–  Simultaneously pull handle for seat height adjustment -1- in -direction of arrow- off lever -4-.
Installing
Install in reverse order, but note the following:
–  Check retaining clip -3- for damage and ensure it is properly seated on lever -4-.
–  Slide handle for seat height adjustment -1- onto lever -4- until it engages.
–  After installing, ensure that retaining clip -4- is properly engaged.
–  Check firm seating by pulling on it.
