Volkswagen Golf Service & Repair Manual: Removing and installing glow plug with flame monitoring -Q8

Volkswagen Golf Service & Repair Manual / Auxiliary heater / Aux. heater/heater booster / Auxiliary heater / Removing and installing glow plug with flame monitoring -Q8

Removing
–  Dismantling and assembling auxiliary heater → Chapter.

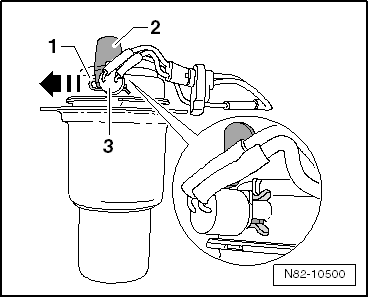

–  Pull out retaining spring -1- in direction of -arrow-.
–  Remove retaining plate -2-.
–  Pull out glow plug with flame monitoring -Q8--3-.
Installing
Install in reverse order.
  Note


Removing and installing glow plug with flame monitoring -Q8

Observe location of retaining spring -1- and retaining plate -2-.
Specified torque
→ Chapter „Assembly overview - auxiliary heater attachments“
