Volkswagen Golf Service & Repair Manual: Removing and installing glove compartment light switch -E26-

  Note
The removal and installation procedures are described for LHD vehicles. Removal and installation for RHD vehicles are similar.
Removing
–  Open glove compartment.

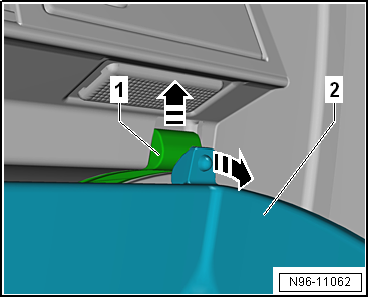

–  Push glove compartment stops -1- upwards on left and right in direction of arrow.
–  Open glove compartment cover -2- further.


Removing and installing glove compartment light switch -E26-

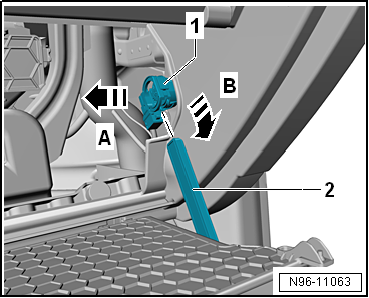

–  Fully open glove compartment cover in direction of arrow -B- such that rack -2- becomes pulled out of damper element -1-.
–  Pull glove compartment light switch -E26- located in damper element -1- out of mounting in direction of arrow -A-.
Installing
Installation is carried out in the reverse sequence.
–  Test functionality.
