Volkswagen Golf Service & Repair Manual: Removing and installing door arrester

Special tools and workshop equipment required


  Note
The description of removal and installation only applies to the left wing. The right side is similar.
Removing

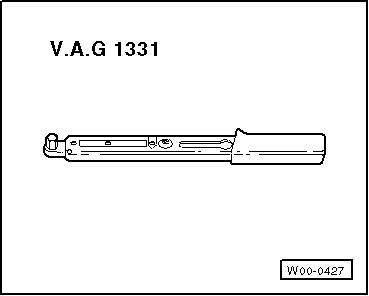

Torque wrench -V.A.G 1331-
 Torque wrench -V.A.G 1331-

Removing and installing door arrester

–  Remove front door trim → General body repairs, interior; Rep. gr.70.
–  Remove self-adhesive cover or front loudspeaker → Communication; Rep. gr.91.

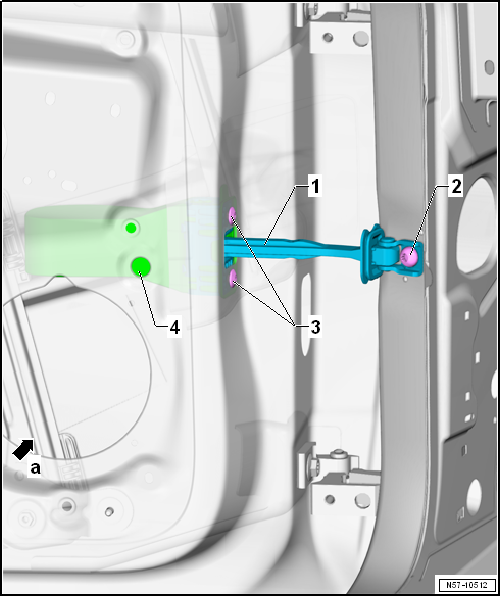

–  Unscrew bolt -2- in A-pillar.
–  Unscrew bolts -3- and remove door arrester -1- through the opening of the loudspeaker -arrow a-.


Installing


Removing and installing door arrester

Install in reverse order of removal.
Specified torques
Door arrester → Chapter „Assembly overview - door“
Adjusting striker pin
