Volkswagen Golf Service & Repair Manual: Removing and installing dash panel insert trim

Special tools and workshop equipment required



Removal wedge -3409-
Removal wedge -3409-

Removing
–  Release locking lever of steering wheel positioner.
–  Pull out steering wheel completely, push it down and fix it in place.

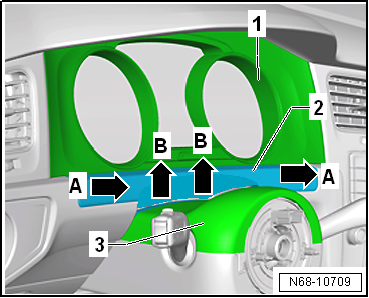

–  Release gap cover for dash panel insert -2- from mountings -arrows A- on dash panel insert -1- using removal wedge -3409-.
–  Release gap cover for dash panel insert -2- from mountings -arrows B- on upper steering column trim -3- and remove it.
Installing
  Note
  • Before installing, check all fasteners for damage and renew if necessary.
  • Installation is carried out in reverse order.


Removing and installing dash panel insert trim
