Volkswagen Golf Service & Repair Manual: Removing and installing cover for Top Tether child seat anchor

Volkswagen Golf Service & Repair Manual / General body repairs, interior / Pasanger protection / Child seat anchors / Removing and installing cover for Top Tether child seat anchor

Special tools and workshop equipment required

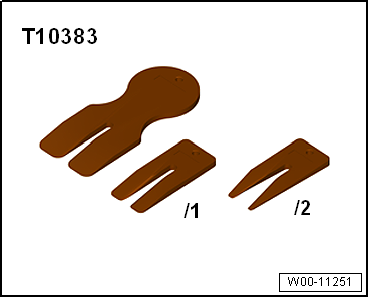

Wedges -T10383
Wedges -T10383

Removing
–  Fold down rear seat backrest.

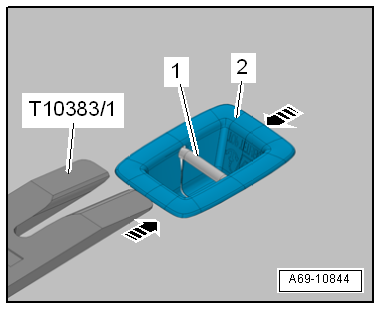

–  Release locking lugs using wedge -T10383/1--arrows-.
–  Lever cover -2- for Top Tether child seat anchor upwards off rear seat backrest.
–  Carefully pull cover off Top Tether child seat anchor -1- and remove it.
Installing
Installation is carried out in reverse order.
Specified torques
  → Chapter „Assembly overview - rear child seat anchors“
