Volkswagen Golf Service & Repair Manual: Removing and installing cover cap, for lock cylinder

Removing and installing cover cap, for lock cylinder
  Note
  • When removing lock cylinder cover cap, the screwdriver should not be turned and the screwdriver should not be used as a lever.
  • The lock cylinder and cover cap for lock cylinder are only installed on the driver side
Removing


Removing and installing cover cap, for lock cylinder

–  Pull door handle off door.

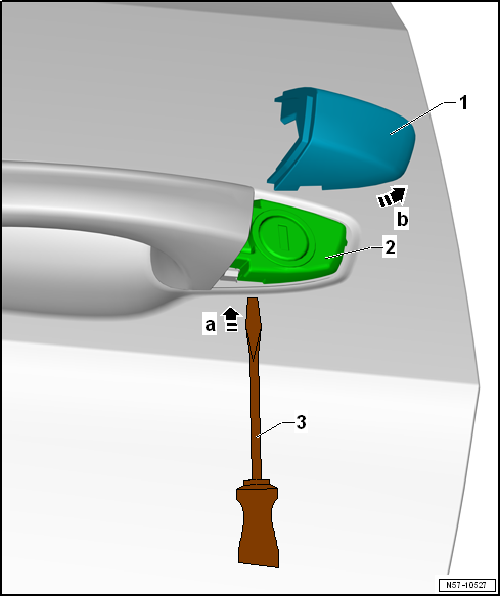

–  Push a small screwdriver -3- slightly -arrow a- into opening on underside of lock cylinder cover cap.
–  Pull lock cylinder housing cover cap -1-, together with small screwdriver, off door lightly from underside -arrow b-.
–  Push cap upwards off lock cylinder.


Installing


Removing and installing cover cap, for lock cylinder

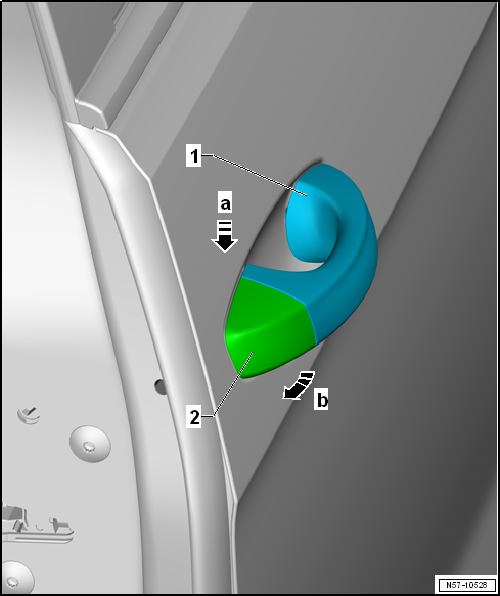

–  Pull door handle -1- off door.
–  Push lock cylinder cover cap -2- at a slight angle from above -arrow a- onto lock cylinder.
–  Push lock cylinder cover cap -2- onto door -arrow b- until cover cap engages in lock cylinder.
Removing and installing striker pin
Special tools and workshop equipment required         Torque wrench -V.A.G 1331- ...

Removing and installing cover cap, without lock cylinder
  Note The cover cap is installed when no lock cylinder is fitted. Removing Special tools and workshop equipment ...
