Volkswagen Golf Service & Repair Manual: Removing and installing connection for external multimedia devices, in the front centre console storage compartment

Volkswagen Golf Service & Repair Manual / Communication / Infotainment / Connection for external multimedia devices / Removing and installing connection for external multimedia devices, in the front centre console storage compartment

  Note
The connection for external multimedia devices is connected to control unit 1 for information electronics -J794-.

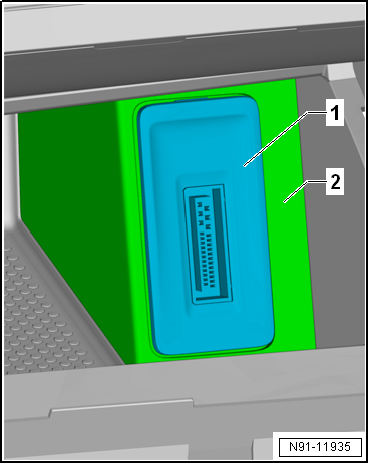

The connection for external multimedia devices -1- is located in the centre console storage compartment -2-.
Corresponding adapter cables are necessary for this → Owner's manual.
Fault finding is done via Guided fault finding → Vehicle diagnostic tester.
Several versions of the connection for external multimedia devices are available:
AUX IN
AUX IN - USB
MEDIA IN
Various external audio sources can be connected to the connection for external multimedia devices:
iPod.
MP3 player.
USB stick
Removing
–  Switch off ignition and all electrical consumers.
–  Remove ignition key, if inserted.
–  Remove storage box in centre console (front) → General body repairs, interior; Rep. gr.68.


Removing and installing connection for external multimedia devices, in the front centre console storage compartment

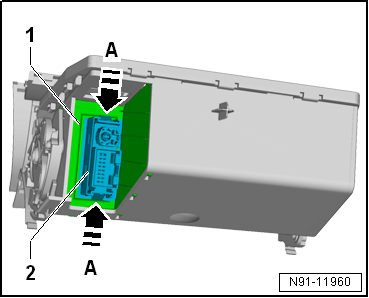

–  Push locking tabs on connection for external multimedia devices -1- in direction of arrow -A-.
–  Push connection for external multimedia devices -2- out of storage box -1-.
Installing
Installation is carried out in reverse order of removal.
  Removing and installing connection for external multimedia devices, in the front centre console storage compartment
Connection for external multimedia devices
...
