Volkswagen Golf Service & Repair Manual: Removing and installing connection for external multimedia devices, in the front armrest compartment

Volkswagen Golf Service & Repair Manual / Communication / Infotainment / Connection for external multimedia devices / Removing and installing connection for external multimedia devices, in the front armrest compartment

Special tools and workshop equipment required

Removal wedge -3409-
Removing
–  Switch off ignition and all electrical consumers.
–  Remove ignition key, if inserted.
  Caution
Danger of damage to component surfaces.
When using leverage tools, mask visible areas of the component with commercially available adhesive tape.
–  Raise armrest of centre console.

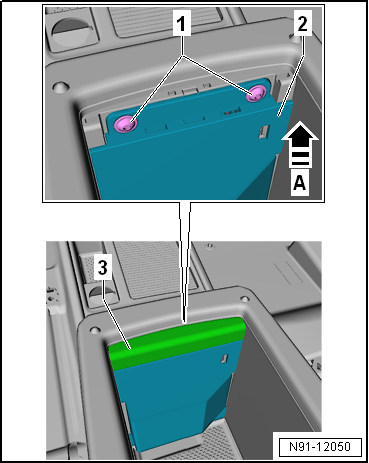

Removing and installing connection for external multimedia devices, in the front armrest compartment

–  Carefully lever off cover -3- using removal wedge -3409-.
–  Remove bolts -1-.
–  Pull mounting plate -2- out of storage compartment in direction of arrow -A-.
–  Release and detach connectors.

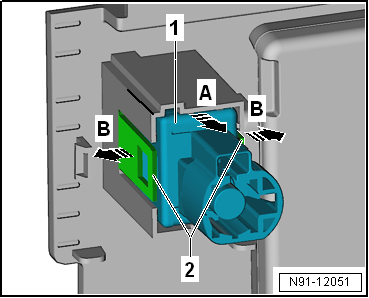

Removing and installing connection for external multimedia devices, in the front armrest compartment

–  Press fasteners -2- in direction of arrow -B- off USB connection.
–  Pull out USB connection -1- in direction of arrow -A-.
Installing
Installation is carried out in reverse order of removal.
