Removing and installing centre underbody cover – e-Golf

Removing

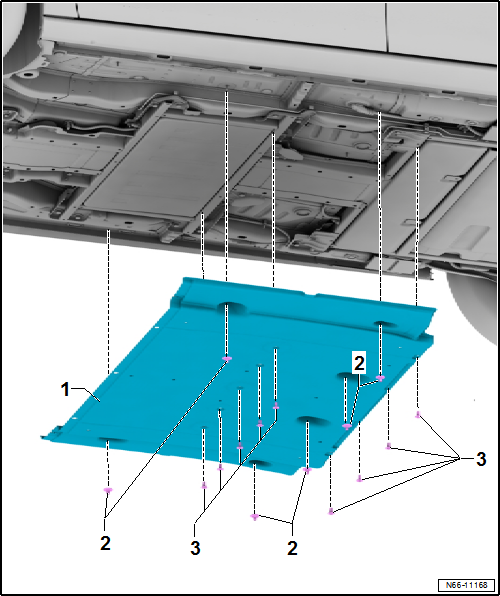

–  Remove bolts -2-.
–  Unscrew nuts -3-.
–  Remove underbody cover -1-.
Installing
Install analogously in reverse order, but note the following:
Specified torque
  Bolts → Item
  Nuts → Item
Removing and installing short centre underbody cover
  Note The removal and installation procedures may have to be modified slightly depending on engine fitted. Removing Unclip spreader river -2- and r ...

Removing and installing rear underbody cover – petrol/diesel
  Note The removal and installation procedures may have to be modified slightly depending on engine fitted. –  Loosen lock washer -3-. ...
