Volkswagen Golf Service & Repair Manual: Removing and installing centre console front storage compartment

Volkswagen Golf Service & Repair Manual / General body repairs, interior / Interion equipment / Centre console / Removing and installing centre console front storage compartment

Removing
–  Remove trim for operating and display unit → Chapter.

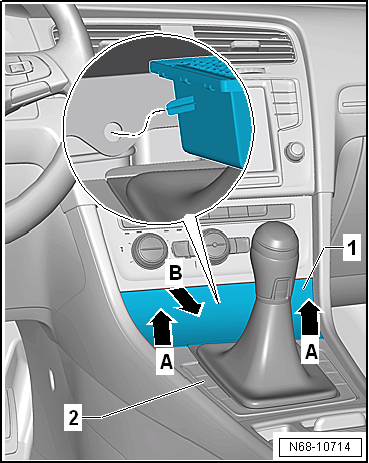

–  Unclip front storage compartment -1- from centre console -2--arrows A-.
–  Remove front storage compartment -1- towards rear from centre console -2--arrow B-.
–  If fitted, disconnect connectors on storage compartment.
Installing
  Note
  Before installing, check all fasteners for damage and renew if necessary.
  Ensure that the locating lug on the front storage compartment is properly seated in the hole of the centre console.
Installation is carried out in reverse order.
  Note
When installing, fit storage compartment at an angle, and insert it in guide at rear. Then, push storage compartment downwards, and engage it.


Removing and installing centre console front storage compartment

Removing and installing trim for operating and display unit
Removing –  Starting at bottom, unclip trim for operating and display unit -1- from operating and display unit -2- and remove it. ...

Removing and installing centre console cover
  Note Removal and installation is described for the centre console cover on driver side. Follow same instructions for the front passenger side as approp ...
