Volkswagen Golf Service & Repair Manual: Removing and installing centre console cover

  Note
Removal and installation is described for the centre console cover on driver side. Follow same instructions for the front passenger side as appropriate.
Special tools and workshop equipment required



Torque wrench -V.A.G 1783
Torque wrench -V.A.G 1783

Removing
–  Remove trim for operating and display unit → Chapter.
–  Remove bolt -2-.

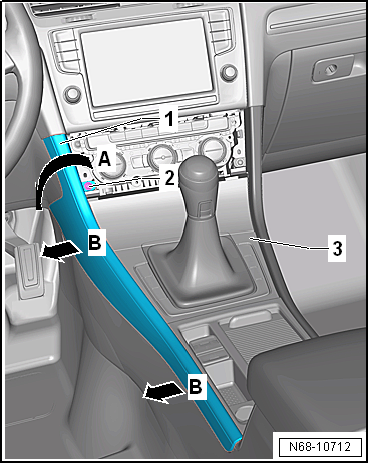

–  Initially, remove centre console cover -1- in area of operating and display unit in -direction of arrow A- from centre console -3-.
–  Unclip centre console cover -1- from centre console -3--arrows B- and remove it.
Installing
  Note
Before installing, check all fasteners for damage and renew if necessary.
Installation is carried out in reverse order.
Specified torques
  → Chapter „Assembly overview - centre console“


Removing and installing centre console cover

Removing and installing centre console front storage compartment
Removing –  Remove trim for operating and display unit → Chapter. –  Unclip front storage ...

Removing and installing centre console insert
Special tools and workshop equipment required       Torque wrench -V.A.G 1783- ...
