Volkswagen Golf Service & Repair Manual: Removing and installing camshaft control valve 1 -N205- and exhaust camshaft control valve 1 -N318-

Volkswagen Golf Service & Repair Manual / 4- cylinder injection engine(1.4 1 direct inction. turbocharger) / Engine cylinder head, valve gear / Valve gear / Removing and installing camshaft control valve 1 -N205- and exhaust camshaft control valve 1 -N318-

  Note
On engines with codes CMBA, CPVA, CXSA, CZCA and CPVB, only camshaft control valve 1 -N205- is installed.
Removing
Inlet camshaft control valve 1 -N205-

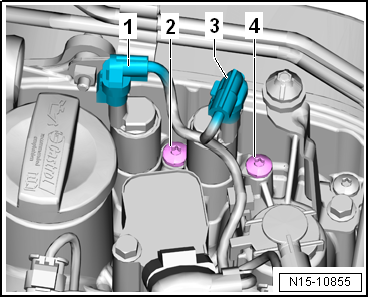

–  Disconnect electrical connector -1-.

–  Unscrew bolt -2- and remove camshaft control valve 1 -N205-.
Exhaust camshaft control valve 1 -N318-
–  Disconnect electrical connector -3-.
–  Unscrew bolt -4- and remove exhaust camshaft control valve 1 -N318-.
Installing
Installation is carried out in the reverse order; note the following:
Specified torques
→ Chapter „Assembly overview - camshaft housing, engine codes CHPA, CMBA, CPVA, CXSA, CZCA, CPVB, CZDA“
→ Chapter „Assembly overview - camshaft housing, engine codes CPTA, CZEA“


Removing and installing camshaft control valve 1 -N205- and exhaust camshaft control valve 1 -N318-
