Volkswagen Golf Service & Repair Manual: Removing and installing button for deactivating interior monitoring and vehicle inclination sensor -E616-

Volkswagen Golf Service & Repair Manual / Electrical system / Lights, lamps, switches inside, anti- theft system / Controls / Removing and installing button for deactivating interior monitoring and vehicle inclination sensor -E616-

Special tools and workshop equipment required

Removal wedge -3409-

Note

The removal and installation procedures are described for LHD vehicles. Removal and installation for RHD vehicles are similar.

Removing

Caution

Danger of damage to component surfaces.

When using leverage tools, mask visible areas of the component with commercially available adhesive tape.

Removing and installing button for deactivating interior monitoring and vehicle inclination sensor -E616-

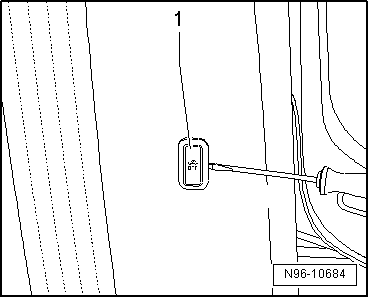

–	Apply removal wedge -VAS 3409- or screwdriver at lower edge of button for deactivating interior monitoring and vehicle inclination sensor -E616- and lever it out.

–	Remove button from B-pillar trim.

Removing and installing button for deactivating interior monitoring and vehicle inclination sensor -E616-

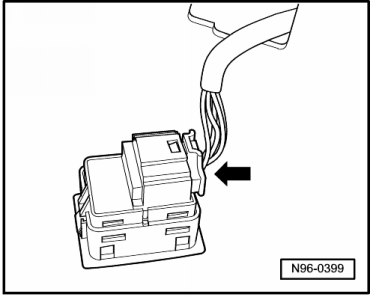

–	Disconnect connector -arrow-.

Installing

Installation is carried out in the reverse sequence.

–	Test functionality.

Removing and installing button for deactivating interior monitoring and vehicle inclination sensor -E616-

Removing and installing door contact switch -F2-/-F3-

Note

The door contact switch is installed in the door lock and cannot be renewed separately in the event of malfunction.

–	Removing and installing front door lock → General body repairs, exterior; Rep. gr.57.
