It is not possible to remove the brake pedal separately.

–	To be able to remove it, pedal cluster/mounting bracket needs to be removed first → Chapter.

Note

Removing brake pedal with mounting bracket removed

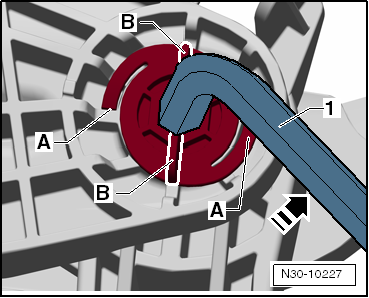

–	Turn pivot pin clockwise in direction indicated by -arrow-.

-1- = 14 mm hex socket wrench

Note

This action will break off the tabs -B-. Renew the pivot pin.

–	Remove securing clip from pivot pin.

–	Pull out pivot pin towards right.

–	Remove brake pedal from mounting bracket.

Installing

Install in reverse order of removal, observing the following:

Note

Renew pivot pin and securing clip.

Note

Do not lubricate or grease the pivot pin. The pivot pin must remain dry.

–	Slide pivot pin from right to left through mounting bracket and brake pedal.

–	Fit securing clip to pivot pin when pivot pin has been inserted into both holes in mounting bracket.

Removing and installing brake pedal

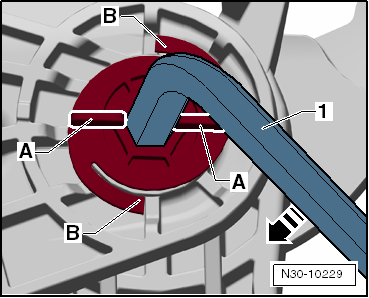

–	Turn pivot pin anti-clockwise in direction indicated by -arrow- until tabs -A- engage audibly on stop in mounting bracket.

–	Install pedal cluster/mounting bracket → Chapter.

Removing and installing brake pedal

Connecting brake pedal to brake servo

Hold ball head of plunger rod in front of mounting and push brake pedal in direction of brake servo, so that the ball head clicks into place. ...
