Volkswagen Golf Service & Repair Manual: Removing and installing bracket for parking aid control unit -J446-/park assist steering control unit -J791-, LHD vehicles

Volkswagen Golf Service & Repair Manual / Electrical system / Wiring / Control units / Removing and installing bracket for parking aid control unit -J446-/park assist steering control unit -J791-, LHD vehicles

Special tools and workshop equipment required
Feeler gauge
Removing
–  If fitted, remove parking aid control unit/park assist steering control unit → Chapter.

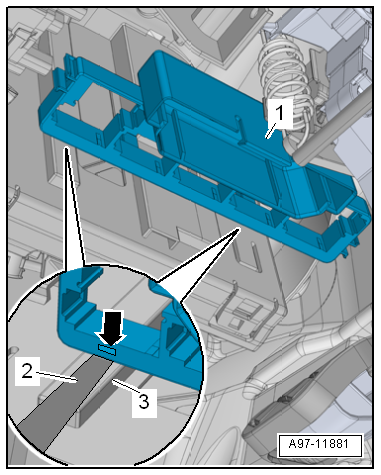

–  To release the fasteners, insert a feeler gauge (0.9 mm) -2- behind the opening -arrow-, as shown in illustration.
–  Remove bracket -1- downwards from bracket for onboard supply control unit -3-.
Installing
Installation is carried out in the reverse sequence.


Removing and installing bracket for parking aid control unit -J446-/park assist steering control unit -J791-, LHD vehicles

Renewing bracket for onboard supply control unit -J519-, LHD vehicles
Removing –  Remove bracket for onboard supply control unit -J519- → Chapter. –  Remove on ...

Removing and installing engine sound generator control unit -J943-, vehicles with active sound, Golf GTD
Removing –  Remove C-pillar trim → General body repairs, interior; Rep. gr.70.     ...
