Volkswagen Golf Service & Repair Manual: Removing and installing bracket for onboard supply control unit -J519-, RHD vehicles

Volkswagen Golf Service & Repair Manual / Electrical system / Wiring / Control units / Removing and installing bracket for onboard supply control unit -J519-, RHD vehicles

Removing
–  With ignition switched off, disconnect earth cable from battery → Chapter.
–  Remove dash panel → General body repairs, interior; Rep. gr.70.
–  Remove dash panel central tube → General body repairs, interior; Rep. gr.70.

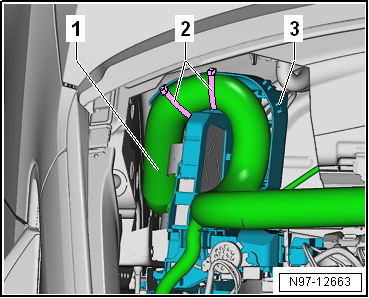

–  Cut through cable tie -1-.
–  Remove wiring harness -2- from bracket for onboard supply control unit -3-.
–  Remove fuse holder C → Chapter.
–  Disconnect connector for front parking aid warning buzzer -H22- → Chapter.
–  Disconnect connector for onboard supply control unit -J519- → Chapter.


Removing and installing bracket for onboard supply control unit -J519-, RHD vehicles

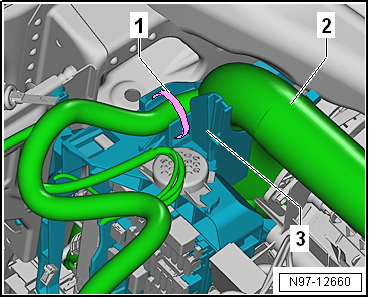

–  Cut through cable tie -2-.
–  Remove wiring harness -1- from bracket for onboard supply control unit -3-.
–  Move electrical wiring harness clear at mounting.
–  Take out bracket towards passenger compartment.
Installing
Installation is carried out in the reverse sequence.
