Volkswagen Golf Service & Repair Manual: Removing and installing backrest release mechanism

Volkswagen Golf Service & Repair Manual / General body repairs, interior / Seat frames / Front seats / Removing and installing backrest release mechanism

Removing

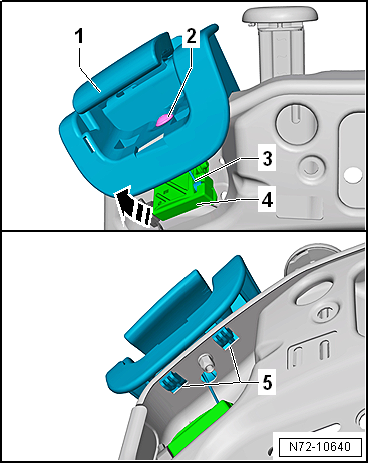

–  Remove backrest cover and backrest padding → Chapter.

–  Pull operating lever -1- upwards and unscrew bolt -2-.
–  Push mounting bracket for backrest release mechanism -4- upwards -arrow- and detach connecting Bowden cable -3-.
–  Release retaining lugs -5- of backrest release mechanism.
Installing
Installation is carried out in reverse order.
Specified torques
  → Chapter „Assembly overview - backrest release mechanism and entry assistance“
  → Chapter „Assembly overview - front backrest“
  → Chapter „Assembly overview - front seat“


Removing and installing backrest release mechanism

Removing and installing trim for backrest release mechanism
Removing –  Pull operating lever -1- upwards -arrow A-. –  Insert flat-bladed screwdriver between tr ...

Removing and installing connecting Bowden cable
Removing –  Remove backrest cover and backrest padding → Chapter.     ...
