Volkswagen Golf Service & Repair Manual: Removing and installing B-pillar trim on front door

  Note
Removal and installation are described only for the left side. Removal and installation of the right side are similar.

Removing and installing B-pillar trim on front door

Removing
–  Run door window down to bottom position.

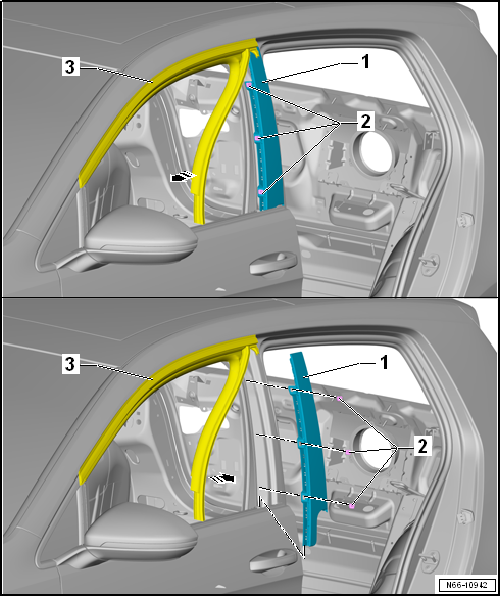

–  Pull window channel -3- in area of B-pillar trim-1- out of door frame.
–  Unclip spreader rivets -2-.
–  Push B-pillar trim -1- downwards and pull off door frame.
–  Pull out B-pillar trim -1- upwards.
Installing
–  Position B-pillar trim -1- on door frame.
–  Guide in B-pillar trim -1- at bottom and fit it in place.
–  Push B-pillar trim -1- upwards until it is in contact with window channel -3-.
–  Hook in spreader rivet -2- from top to bottom and insert window channel -3- into B-pillar trim.
Removing and installing water deflector
  Note Removal and installation are described only for the left side. Removal and installation of the right side are similar. Removing –  ...

Removing and installing B-pillar trim on rear door
  Note Removal and installation are described only for the left side. Removal and installation of the right side are similar. Removing –  ...
