Volkswagen Golf Service & Repair Manual: Removing and installing automatic distance control unit, variant 1

Volkswagen Golf Service & Repair Manual / Electrical system / Starter- current supply- CC / Adaptive cruise control / Removing and installing automatic distance control unit, variant 1

  Note
If the automatic distance control unit -J428- is renewed, start the respective function → Vehicle diagnostic tester.
Special tools and workshop equipment required

Torque wrench -V.A.G 1331-
Removing


Removing and installing automatic distance control unit, variant 1

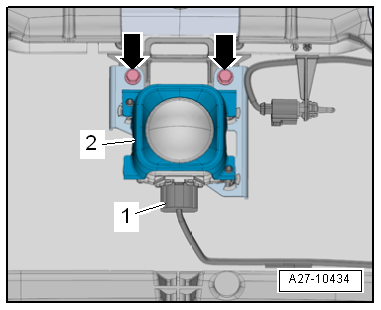

–  Remove bolts -arrows-.
–  Remove adaptive cruise control unit -J428--2-.
–  Disconnect electrical connector -1-.
Removing trim for radar sensor


Removing and installing automatic distance control unit, variant 1

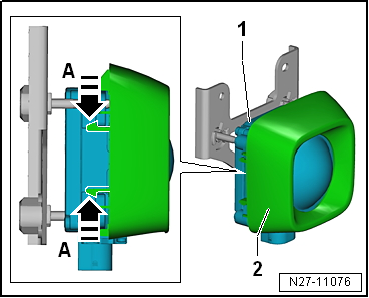

–  Release retaining tabs of trim for radar sensor -2- on both sides in direction of arrow -A-.
–  Remove trim for radar sensor -2- from adaptive cruise control unit -J428--1-.
Installing
Install in the reverse order of removal, observing the following:
–  Calibrate adaptive cruise control → Chapter.
Specified torques
→ Chapter „Overview of fitting locations – adaptive cruise control, variant 1“


Removing and installing automatic distance control unit, variant 1

Overview of fitting locations – adaptive cruise control, variant 2
1 -  Dash panel insert -KX2- With control unit in dash panel insert -J285-. Removing and installing → Chapter 2& ...

Removing automatic distance control unit from and installing on retaining plate, variant 1
Removing: → Anchor Installing: → Anchor Adjusting adjustment screws: → Anchor ...
