Volkswagen Golf Owners Manual: Rear view

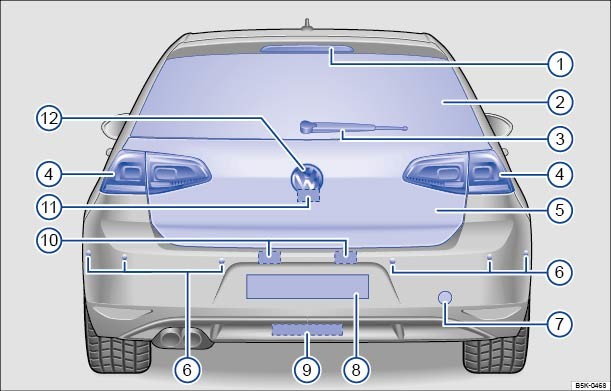

Fig. 3 Overview of the rear of the vehicle

Key for  :

  1. High-mounted brake light
  2. Rear window

    • Rear window heating  
  3. Rear wiper  
  4. Tail light cluster    
  5. Tailgate  
  6. Rear sensors for the ParkPilot or Park Assist system    
  7. Mounting for the rear towing eye behind a cover  
  8. Rear number plate holder
  9. Area of towing bracket  
  10. Number plate lights  
  11. Area of the reverse assist system (Rear Assist)  
  12. Volkswagen badge for opening the tailgate  
