Volkswagen Golf Service & Repair Manual: Rear brakes

Rear brakes FNc-M38 (15”):

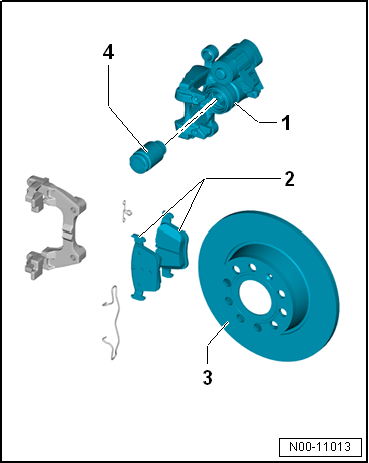

Rear brakes

Item PR No.   1KE / 1KV
1 Brake caliper FNc-M38 (15”)
2 Brake pad, thickness mm 11
Brake pad, wear limit without backplate mm 2
3 Brake disc Diameter in mm 272
  Brake disc, thickness mm 10
  Brake disc, wear limit mm 8
4 Brake caliper, piston Diameter in mm 38


Rear brakes FNc-M42 (17”):


Rear brakes

Item PR No.   1KJ / 1KY
1 Brake caliper FNc-M42 (17”)
2 Brake pad, thickness mm 11
Brake pad, wear limit without backplate mm 2
3 Brake disc Diameter in mm 310
  Brake disc, thickness mm 22
  Brake disc, wear limit mm 20
4 Brake caliper, piston Diameter in mm 42
