Volkswagen Golf Service & Repair Manual: Pre-treatment of bonded surfaces when renewing laser-welded roofs

Volkswagen Golf Service & Repair Manual / General information, paint / General notes / Pre-treatment of bonded surfaces when renewing laser-welded roofs

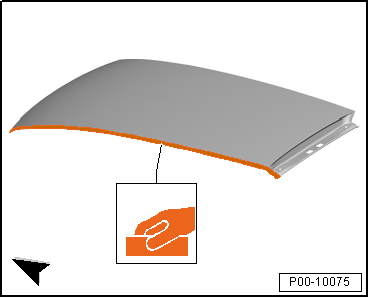

Using P180-grade sandpaper, dry-sand cathodic dip primer on bonding surface for roof → Item down to bare metal.


Pre-treatment of bonded surfaces when renewing laser-welded roofs

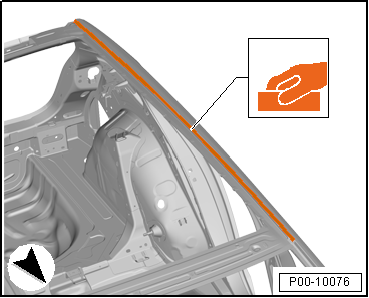

–  Using P180-grade sandpaper, dry-sand bonding surface for roof pillars → Item down to bare metal.
  Note
Prime any bare metal surfaces outside the bonding surface → Item using 2-pack wash primer -LHV 043 000 A2-, and then apply 2-pack HS Performance surfacer.
–  Clean bonding area using silicon remover.
–  Renew roof → Body - centre, roof, frame; Rep. gr.51.


Pre-treatment of bonded surfaces when renewing laser-welded roofs

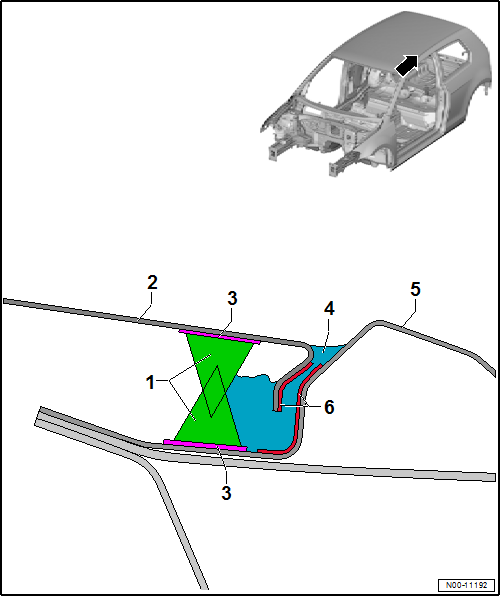

Pre-treatment of bonded surfaces when renewing laser-welded roofs

1 -  2-pack glass adhesive
2 -  Roof
3 -  Glass and paint primer
4 -  2-pack body adhesive
5 -  Roof pillar/side panel
6 -  Area sanded down to bare metal
