Volkswagen Golf Owners Manual: Overview of the driver side

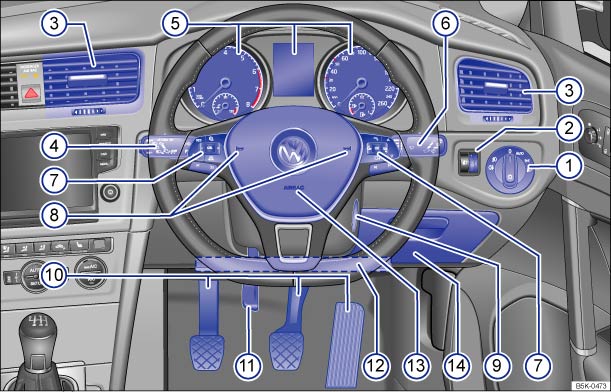

Fig. 5 Overview of the driver side (left-hand drive vehicles)

Fig. 6 Overview of the driver side (right-hand drive vehicles)

Key for   and  :

  1. Button for interior monitoring
  2. Light switch

    • Daytime running lights or daytime headlights
    • Automatic headlight control
    • Side light and dipped beam headlights ,
    • Fog lights ,
  3. Control for:

    • Headlight range control
    • Instrument and switch lighting
  4. Vent
  5. Lever  

    • For main beam headlights
    • Dipped beam headlights
    • For headlight flasher x
    • For turn signal
    • For parking lights
    • With switches and buttons for operating the cruise control system (CCS) and the speed limiter     
    • With button for driver assist systems
  6. Instrument cluster:

    • Instruments  
    • Display  
    • Warning and indicator lamps  
  7. Lever for windscreen wipers and washers  

    • Windscreen wipers
    • Interval wipe for the windscreen
    • Interval lengths or sensitivity of the rain sensor
    • Windscreen wipers switched off
    • Flick wipe x
    • Windscreen wiper
    • Wash and wipe system for the windscreen
    • Rear wiper
    • Wash and wipe system for the rear window
    • Lever with buttons for operating the Volkswagen information system and infotainment system    
  8. Controls on the multifunction steering wheel  

    • Buttons for operating the cruise control system (CCS) and the speed limiter    
    • Buttons for operating the Adaptive Cruise Control (ACC)
    • Volume setting for the radio, navigation announcements or a telephone conversation
    • Buttons for operating the Volkswagen information system
    • Opening the main telephone menu or accepting a telephone call
    • Activating voice commands
    • Audio, navigation
  9. Horn
  10. Ignition lock  
  11. Pedals  
  12. Lever for adjusting the steering column  
  13. Location of the knee airbag in the dash panel  
  14. Driver front airbag  
  15. Stowage compartment  
