Volkswagen Golf Service & Repair Manual: Overview of fitting locations – controls in rear doors

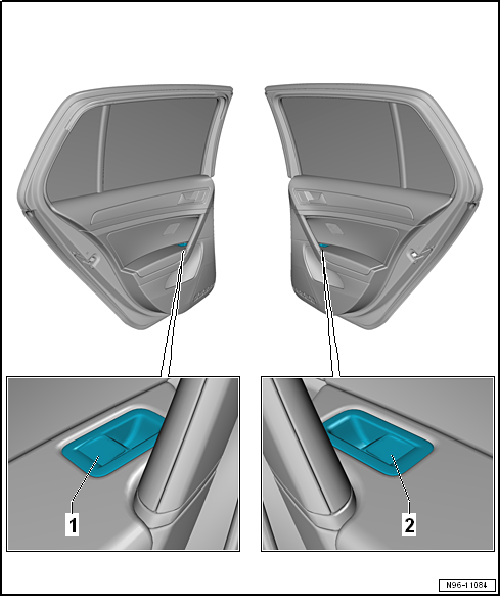

Overview of fitting locations – controls in rear doors

1 -  Rear driver side window regulator button -E711-
Removing and installing → Chapter
2 -  Rear passenger side window regulator button -E713-
Removing and installing → Chapter


Not illustrated:
Rear left door contact switch -F10- and rear right door contact switch -F11- → Chapter „Removing and installing rear door contact switches -F10-/-F11-“.

Overview of fitting locations – controls in front doors
  Note The illustration shows fitting locations for LHD vehicles. Fitting locations for RHD vehicles are similar. 1 -  Driver side interior locking ...

Overview of fitting locations – controls in centre console
  Note The illustration shows fitting locations for LHD vehicles. Fitting locations for RHD vehicles are similar. 1 -  Starter button -E378- ...
