Overview of fitting locations – control units, front of RHD vehicles

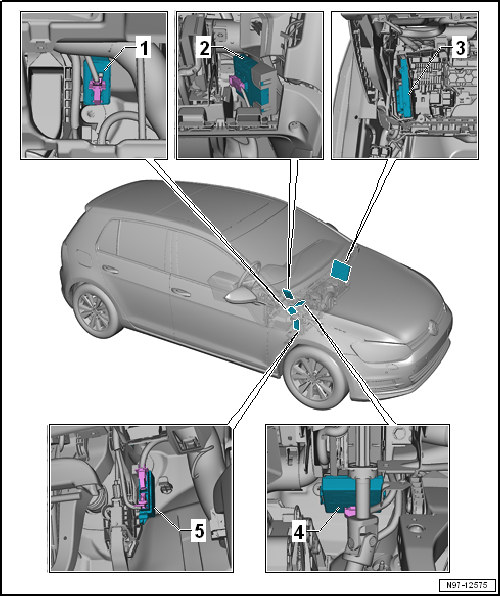

1 -  Headlight range control unit -J431-/control unit for cornering light and headlight range control -J745-
Assembly overview → Chapter
2 -  Interface for entry and start system -J965-
Assembly overview → Chapter
3 -  Onboard supply control unit -J519-
Assembly overview → Chapter
4 -  Data bus diagnostic interface -J533-
Assembly overview → Chapter
5 -  Parking aid control unit -J446- or park assist steering control unit -J791-
Assembly overview → Chapter
Overview of fitting locations – control units, front of LHD vehicles
1 -  Data bus diagnostic interface -J533- Assembly overview → Chapter 2 -  Bracket Assembly overvie ...

Overview of fitting locations – control units, rear
1 -  Remote control receiver for auxiliary coolant heater -R149- Removing and installing remote control receiver for auxiliary coolant heater -R149- ...
