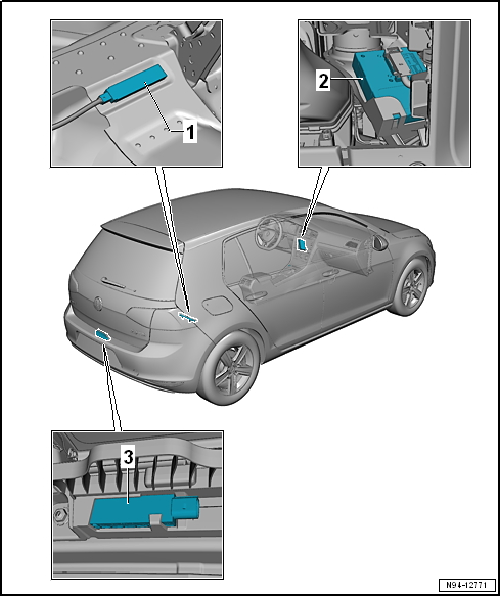

Overview of fitting locations - rear keyless entry system, LHD vehicles

1 -  Luggage compartment aerial for entry and start system -R137-
Removing and installing → Chapter
2 -  Interface for entry and start system -J965-
Removing and installing → Chapter
3 -  Rear bumper aerial for entry and start system -R136-
Removing and installing → Chapter
