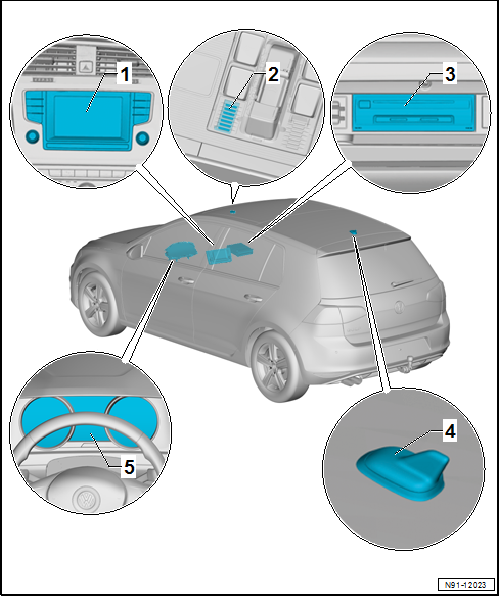

Overview of fitting locations - mobile online services

1 -  Radio/RNS -RX1-
2 -  Telephone microphone -R38-
Installed in front section of roof console
Removing and installing → Chapter
3 -  Control unit 1 for information electronics -J794-
Installed in glove compartment
Emergency call module control unit and communication unit -J949- is integrated into control unit 1 for information electronics -J794-
Removing and installing → Chapter
4 -  Roof aerial -RX5-
Removing and installing → Chapter
Fitted under rear bumper cover on right. Removing and installing, eGolf
5 -  Control unit in dash panel insert -J285-
General notes
Mobile online services are available only in conjunction with a radio/RNS -RX1-. For vehicles equipped with a telephone, the telephone function ...

Fitting locations overview - mobile online services, eGolf
1 -  Control unit in dash panel insert -J285- 2 -  Telephone microphone -R38- Installed in front section of roof console ...
