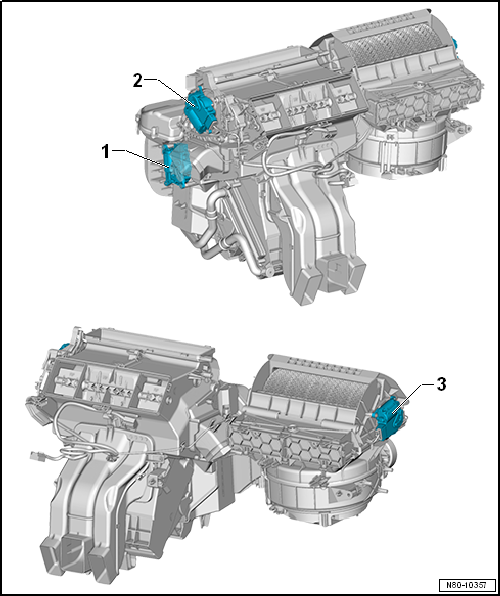

Overview of fitting locations - front control motors, LHD vehicles

1 -  Temperature flap control motor -V68-
Checking: with vehicle diagnostic tester
Removing and installing → Chapter
Renewing: initiate basic setting using vehicle diagnostic tester.
2 -  Air distribution flap control motor -V428-
Checking: with vehicle diagnostic tester
Removing and installing → Chapter
Renewing: initiate basic setting using vehicle diagnostic tester.
3 -  Air recirculation flap control motor -V113-
Checking: with vehicle diagnostic tester
Removing and installing → Chapter
Renewing: initiate basic setting using vehicle diagnostic tester.
Control motors
...

Overview of fitting locations - front control motors, RHD vehicles
1 -  Air recirculation flap control motor -V113- Checking: with vehicle diagnostic tester Removing and installing → Chapter ...
