Volkswagen Golf Service & Repair Manual: Overview of fitting locations - front control motors, air conditioning system with electric/manual controls, LHD vehicles

Volkswagen Golf Service & Repair Manual / Heating, air conditioning / Air conditioner / Control motors / Overview of fitting locations - front control motors, air conditioning system with electric/manual controls, LHD vehicles

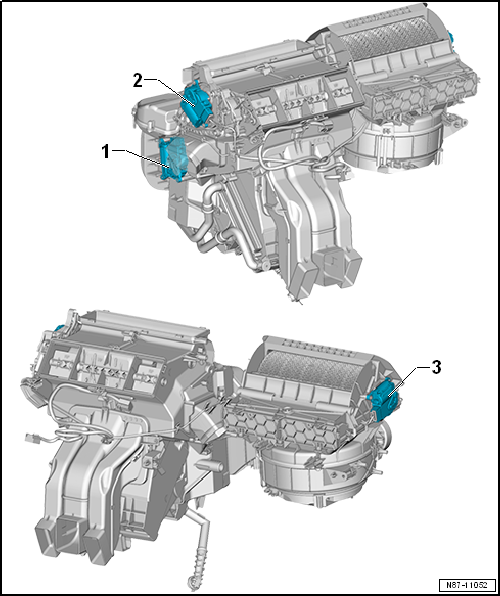

Overview of fitting locations - front control motors, air conditioning system with electric/manual controls, LHD vehicles

1 -  Temperature flap control motor -V68-
With potentiometer for temperature flap control motor -G92-.
Checking: with vehicle diagnostic tester
Removing and installing → Chapter.
Renewing: initiate basic setting using vehicle diagnostic tester.
2 -  Air distribution flap control motor -V428-
With potentiometer for air distribution flap control motor -G645-.
Checking: with vehicle diagnostic tester
Removing and installing → Chapter.
Renewing: initiate basic setting using vehicle diagnostic tester.
3 -  Air recirculation flap control motor -V113-
Checking: with vehicle diagnostic tester
Removing and installing → Chapter.
Renewing: initiate basic setting using vehicle diagnostic tester.
Control motors
...

Overview of fitting locations - front control motors, air conditioning system with electric/manual controls, RHD vehicles
1 -  Temperature flap control motor -V68- Checking: with vehicle diagnostic tester Removing and installing → Chapter. ...
