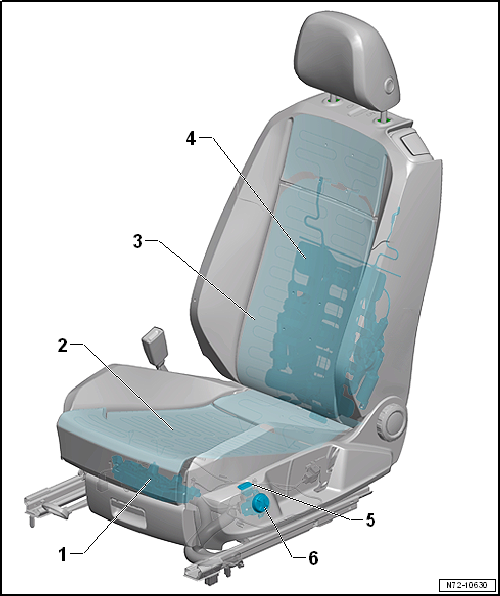

Overview of fitting locations - electrical and electronic components, standard seat, seat of type "ergo Aktiv"

1 -	Massage control unit -J740-

Removing and installing → Chapter
Depends on equipment

2 -	Seat heating element

Heated seat cushion for driver seat -Z6
Heated seat cushion for front passenger seat -Z8
Depends on equipment
Removing and installing → Chapter

3 -	Backrest heating element

Heated backrest for driver seat -Z7
Heated backrest for front passenger seat -Z9
Depends on equipment
Removing and installing → Chapter

4 -	Lumbar support

Driver seat lumbar support longitudinal adjustment motor -V125
Driver seat lumbar support height adjustment motor -V129
Front passenger seat lumbar support longitudinal adjustment motor -V126
Front passenger seat lumbar support height adjustment motor -V130
Equipment version
Assembly overview → Anchor
Removing and installing → Chapter

5 -	Massage function button

Driver seat massage function button -E670-
Front passenger seat massage function button -E671
Depends on equipment
To remove, carefully lever out of seat trim using removal wedge -3409

6 -	Lumbar support adjustment switch

Driver seat lumbar support adjustment switch -E176
Front passenger seat lumbar support adjustment switch -E177-
Depends on equipment
Removing and installing → Chapter
Removing and installing lumbar support → Chapter
