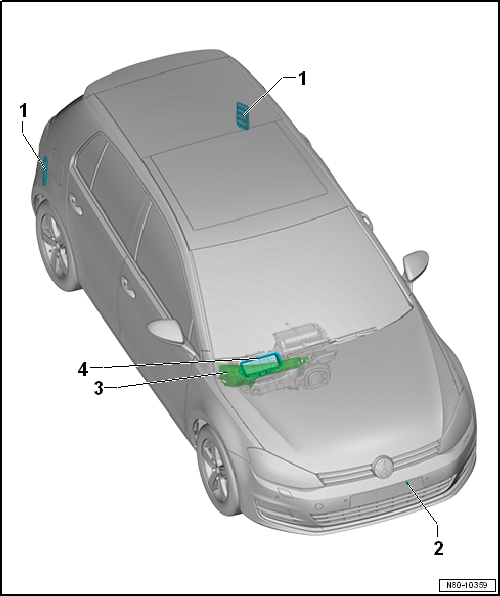

Overview of fitting locations - components not located in passenger compartment, Golf LHD

1 -  Exhaust ventilation for passenger compartment
Checking → Chapter
Removing and installing → Chapter
2 -  Ambient temperature sensor -G17-
Removing and installing → Chapter
3 -  Cover for fresh air intake duct
Removing and installing → Chapter
4 -  Fresh air intake
Removing and installing → Chapter
Overview of fitting locations - heating
...

Overview of fitting locations - components not located in passenger compartment, Golf RHD
1 -  Exhaust ventilation for passenger compartment Checking → Chapter Removing and installing → Chapter ...
