Volkswagen Golf Service & Repair Manual: Mounting front seat on seat repair stand

Special tools and workshop equipment required

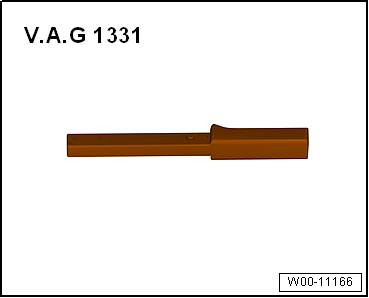

Torque wrench -V.A.G 1331
Torque wrench -V.A.G 1331



Torque wrench -V.A.G 1783
Torque wrench -V.A.G 1783

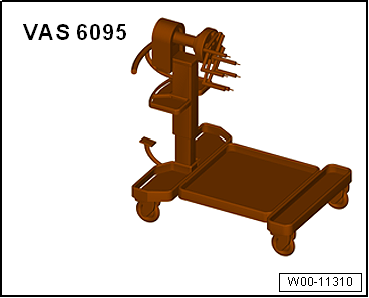

Engine and gearbox support -VAS 6095
Engine and gearbox support -VAS 6095

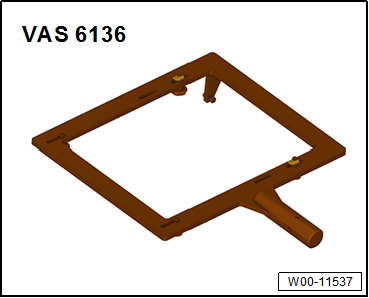

  Seat repair stand -VAS 6136-
Installing
–  Remove front seats → Chapter.
–  Mount seat repair stand -VAS 6136- on engine and gearbox support -VAS 6095-.
–  Place seat on seat repair stand -VAS 6136-.
–  Secure front seat on seat repair stand -VAS 6136-.
Removing
Removal is carried out in reverse order of installation.
Specified torques
  → Chapter „Removing and installing front seat “


Mounting front seat on seat repair stand

Overview of fitting locations - seat variants
1 -  Driver seat Configuration depends on vehicle equipment Assembly overview - front seat → Chapter Assembly overview - front backrest →& ...

Front seats
...
