Volkswagen Golf Owners Manual: Insulating glass windscreen

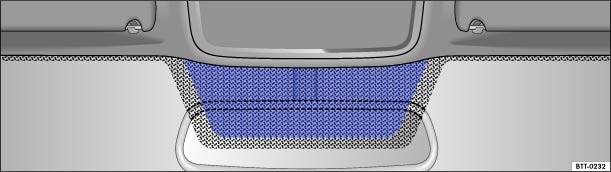

Fig. 85 Metal-coated windscreen for infrared reflection with communication window (blue area)
First read and observe the introductory information
and safety warnings Insulating glass windscreens have a coating which reflects infrared radiation. There is a non-coated area above the interior mirror (communication window) which ensures that electronic accessories, for example remote controls, can function properly.
The uncoated area should not be covered either from the outside or the inside, nor should any stickers be applied to this area as this could cause a fault in the electronic components.
Sun visors
Fig. 84 Sun visor
First read and observe the introductory information
and safety warnings Various positions for the driver and front passenger
sun visors:
Folded down over the windscreen.
...
Other materials:
Exploded view - mechatronic unit
1 -
Bolt
For securing mechatronic unit for dual clutch gearbox -J743- on
gearbox housing.
Qty 3, M8 x 35
Always renew after removing.
Specified torque and tightening sequence
→ Fig.
...
Assembly overview - front backrest
Front backrest, standard seat, seat of type "ergo Aktiv"
Note
The illustration shows the driver seat backrest. The front
passenger seat backrest is similar (mirror image of driver seat
backrest).
The illustration shows the fro ...
Assembly overview - track rod, multi-link suspension, four-wheel drive
1 -
Subframe
2 -
Bolt
Renew after removing
70 Nm +180°
3 -
Wheel bearing housing
4 -
Track rod
Removing and installing
→ ...
