Volkswagen Golf Service & Repair Manual: Installing to engine and gearbox support

Installing to engine and gearbox support

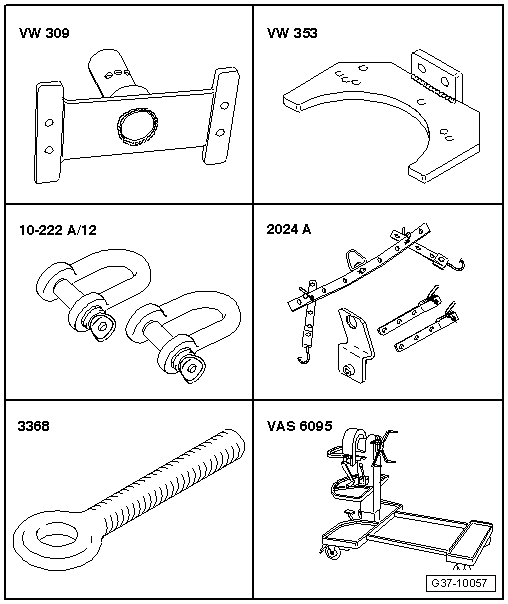

Special tools and workshop equipment required
Support plate -VW 309-
Gearbox support -VW 353-
Shackle -10 - 222 A /12-
Lifting tackle -2024 A-
Eye bolt -3368-
Engine and gearbox support -VAS 6095-
Workshop hoist -VAS 6100-

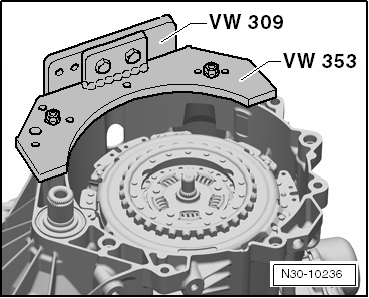

Secure gearbox on gearbox support -VW 353-.
Requirement:
Gearbox is sealed so that no oil can escape → Anchor.


Installing to engine and gearbox support

Lifting gearbox into engine and gearbox support
Requirement:
Gearbox is sealed so that no oil can escape → Anchor.

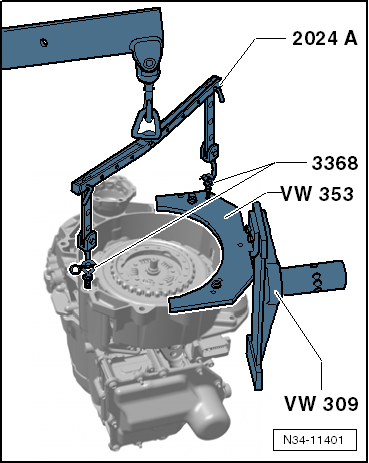

The gearbox is lifted onto the engine and gearbox support -VAS 6095- together with the gearbox support -VW 353- using the workshop hoist -VAS 6100-.
