Volkswagen Golf Service & Repair Manual: Installing roof reinforcement to body, estate without sliding sunroof

Volkswagen Golf Service & Repair Manual / General body repairs, interior / Trim, noise insulation / Roof trims / Installing roof reinforcement to body, estate without sliding sunroof

Special tools and workshop equipment required



Electric cutter -V.A.G 1561A
Electric cutter -V.A.G 1561A



Scraping blade -V.A.G 1561/20
Scraping blade -V.A.G 1561/20



Cartridge gun -V.A.G 1628
Cartridge gun -V.A.G 1628



Release lever -T10039
Release lever -T10039

Removing
–  Remove moulded headliner → Chapter.

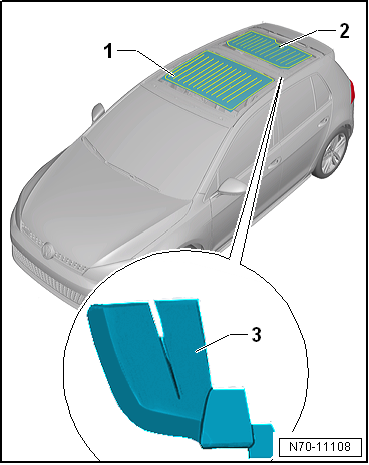

–  Cut roof reinforcements -1- and -2- into approx. 6 cm wide strips -3--dot-dash lines-, using a cutter knife.
–  Pull strips -3- from roof.
–  Trim back adhesive residues with electric cutter -V.A.G 1561A- and scraping blade -V.A.G 1561/20-.
  Note
If the paint structure has been damaged on removal of roof reinforcements, repair paint damage according to guidelines of → Paint workshop manual.
Installing
  Note
Observe adhesive processing instructions when installing the roof reinforcement.


Installing roof reinforcement to body, estate without sliding sunroof

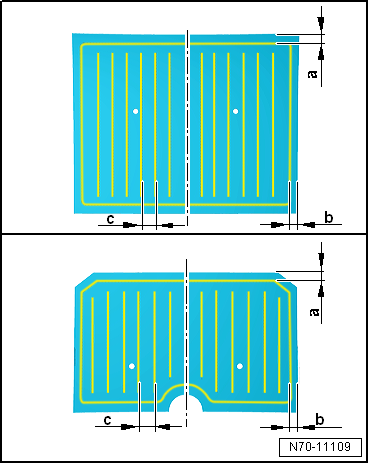

–  Use hand-cartridge gun -V.A.G 1628- to apply single-component assembly adhesive ( → Electronic Parts Catalogue) to roof reinforcements. Observe the following dimensions while doing so.
  •   Dimension -a- = 35 mm
  •   Dimension -b- = 31 mm
  •   Dimension -c- = 58 mm


Installing roof reinforcement to body, estate without sliding sunroof

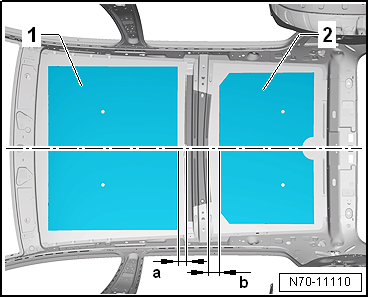

–  Measure roof reinforcements -1- and -2- to width and mark centre of both sides.
–  Guide roof reinforcement -1- into vehicle.
–  Position roof reinforcement -1- according to -dimension a- centrally on roof and press it on across entire surface.
Dimension -a- for saloon = 50.5 ± 3 mm from front sheet-metal edge.
Dimension -a- for estate without sliding sunroof = 25 ± 1 mm from front sheet-metal edge.
–  Guide roof reinforcement -2- into vehicle.
–  Position roof reinforcement -2- according to -dimension b- centrally on roof and press it on across entire surface.
Dimension -b- for saloon = 61 ± 3 mm from rear sheet-metal edge.
Dimension -b- for estate without sliding sunroof = 25 ± 1 mm from rear sheet-metal edge.
