Volkswagen Golf Service & Repair Manual: Infrared heater -VAS 6878-

Designation:

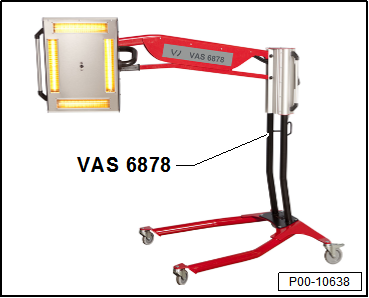

Infrared heater -VAS 6878-
Product description:
The infrared heater is used to dry putty, filler, base coat, top coat and clear coat on vertical or horizontal surfaces.
Short-wave infrared heater with one head
12 pre-programmed settings and 3 user-defined programs
Fully automatic drying process with pyrometer for temperature control, laser pointer and automatic distance measurement
Technical data:
400 V, 3 PH+PE
6 KW
9 A
16A fuse with delayed action
Items supplied:
Complete stand with timer and assembly instructions
  Note
Observe manufacturer's instructions for assembly and use.
