Volkswagen Golf Service & Repair Manual: Infrared heater -VAS 6875

Designation:

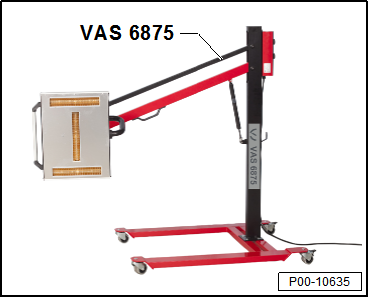

Infrared heater -VAS 6875-
Product description:
The infrared heater is used to dry putty, filler, base coat, top coat and clear coat on vertical or horizontal surfaces with 2 timers for flashing off and curing.
Technical data:
230 V, 1 PH +PE
3 KW
13 A
Items supplied:
Complete stand with timer and assembly instructions
  Note
Observe manufacturer's instructions for assembly and use.
