Volkswagen Golf Service & Repair Manual: Identification of Valeo heater and air conditioning unit

Volkswagen Golf Service & Repair Manual / Heating, air conditioning / Technical data / Identification / Identification of Valeo heater and air conditioning unit

  Note
Pay attention to correct assignment when replacing components. The combination of different makes of component is not permitted → Electronic Parts Catalogue.
–  Remove left centre console trim in footwell → General body repairs, interior; Rep. gr.68.

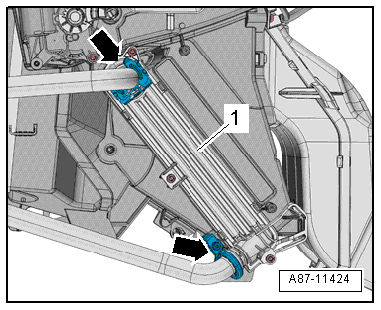

If the coolant pipes are arranged as shown in the illustration, the manufacturer of the heater and air conditioning unit is Valeo.


Identification of Valeo heater and air conditioning unit

Identification
...

Identification of Denso heater and air conditioning unit
  Note Pay attention to correct assignment when replacing components. The combination of different makes of component is not permitted →  ...
