Volkswagen Golf Service & Repair Manual: Identification

Gearbox identification

Gearbox identification

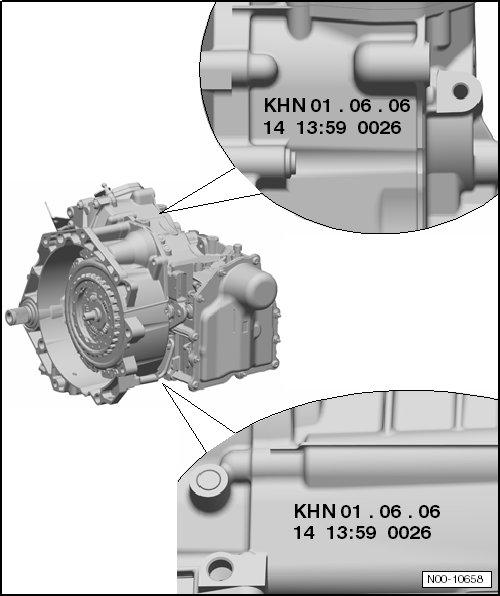

The following information is indicated on the gearbox (example):
KHN = Gearbox code
01.06.06 = Production date
14 = Factory code
13:59 = Production time
0026 = Serial number


  Note
The gearbox code also appears on the vehicle data stickers.
