Volkswagen Golf Service & Repair Manual: Fixing position of subframe, multi-link suspension, front-wheel drive, except for e-Golf and Golf GTE

Volkswagen Golf Service & Repair Manual / Running gear, axles, steering / Rear suspension, drive shaft / Subframe / Fixing position of subframe, multi-link suspension, front-wheel drive, except for e-Golf and Golf GTE

Special tools and workshop equipment required

Locating pins -T10096-


Fixing position of subframe, multi-link suspension, front-wheel drive, except for e-Golf and Golf GTE

Engine and gearbox jack -V.A.G 1383 A-
Installing locating pins -T10096-


Fixing position of subframe, multi-link suspension, front-wheel drive, except for e-Golf and Golf GTE

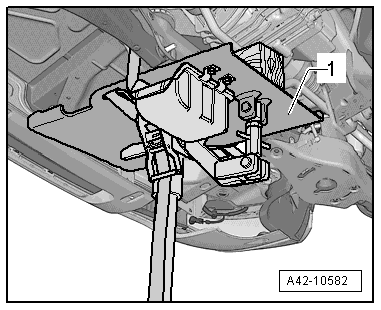

–  Position engine and gearbox jack -V.A.G 1383 A- with universal gearbox mounting -V.A.G 1359/2--1- under subframe and secure with tensioning strap.


Fixing position of subframe, multi-link suspension, front-wheel drive, except for e-Golf and Golf GTE

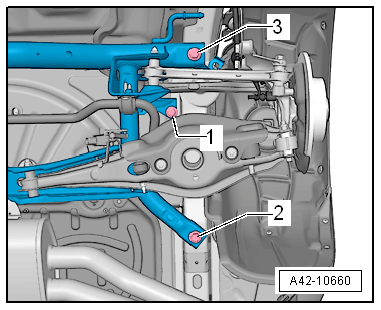

–  Unscrew bolt -1- on both sides.
To fix position of subframe, locating pins -T10096- must be screwed in successively at positions -2- and -3- on both sides of vehicle.


Fixing position of subframe, multi-link suspension, front-wheel drive, except for e-Golf and Golf GTE

–  Remove one of the front bolts of the subframe -arrow-


Fixing position of subframe, multi-link suspension, front-wheel drive, except for e-Golf and Golf GTE

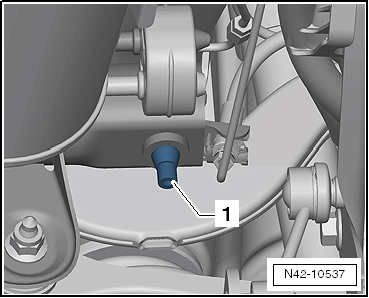

–  Screw in locating pins -T10096--1-.
  Note
The locating pins -T10096- may be tightened only to a maximum of 20 Nm; otherwise the threads of the locating pins may be damaged.
–  This procedure must now be carried out for the second front bolt and the rear bolts of the subframe.
The position of the subframe is now fixed.
