Volkswagen Golf Service & Repair Manual: Connector pin assignment for auxiliary heater

Connector pin assignment for auxiliary heater

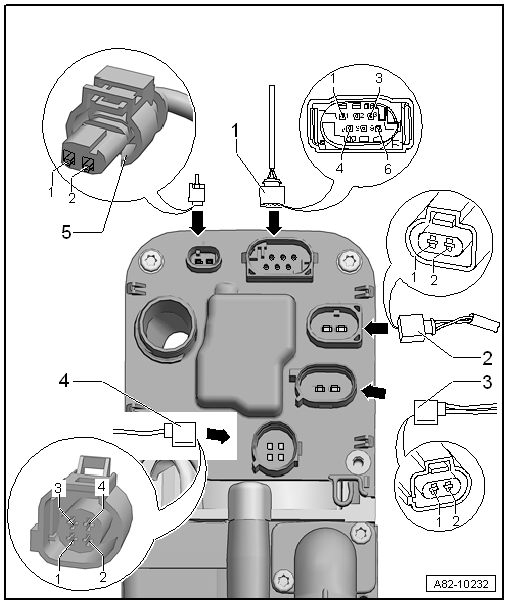

1 -  6-pin connector
Information on pin assignment can be found in the latest current flow diagram → Current flow diagrams, Electrical fault finding and Fitting locations.
2 -  2-pin connector
Information on pin assignment can be found in the latest current flow diagram → Current flow diagrams, Electrical fault finding and Fitting locations.
3 -  2-pin connector
Information on pin assignment can be found in the latest current flow diagram → Current flow diagrams, Electrical fault finding and Fitting locations.
4 -  4-pin connector
Information on pin assignment can be found in the latest current flow diagram → Current flow diagrams, Electrical fault finding and Fitting locations.
5 -  2-pin connector
Information on pin assignment can be found in the latest current flow diagram → Current flow diagrams, Electrical fault finding and Fitting locations.
Removing and installing temperature sensor -G18- and overheating sensor -G189
Removing     –  Dismantling and assembling auxiliary heater → Chapter. ...

Dismantling and assembling burner unit
Dismantling –  Remove auxiliary heater → Chapter. –  Dismantle auxiliary heater  ...
