Volkswagen Golf Service & Repair Manual: Connecting brake pedal to brake servo

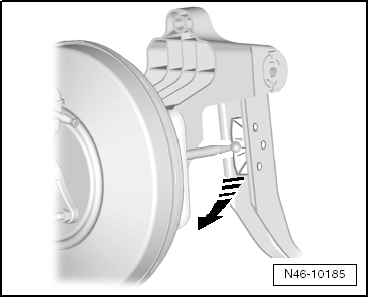

  Hold ball head of plunger rod in front of mounting and push brake pedal in direction of brake servo, so that the ball head clicks into place.
–  Check engagement by pulling briefly on brake pedal.
Continue installation in reverse order.


Connecting brake pedal to brake servo

Separating brake pedal from brake servo
Special tools and workshop equipment required     Release tool -T10159B- –  ...

Removing and installing brake pedal
It is not possible to remove the brake pedal separately. –  To be able to remove it, pedal cluster/mounting bracket needs to be removed ...
