Volkswagen Golf Service & Repair Manual: Connecting and disconnecting airbag adapter

Special tools and workshop equipment required



Airbag adapter -VAS 6282-
Airbag adapter -VAS 6282-

Connecting and disconnecting airbag adapter

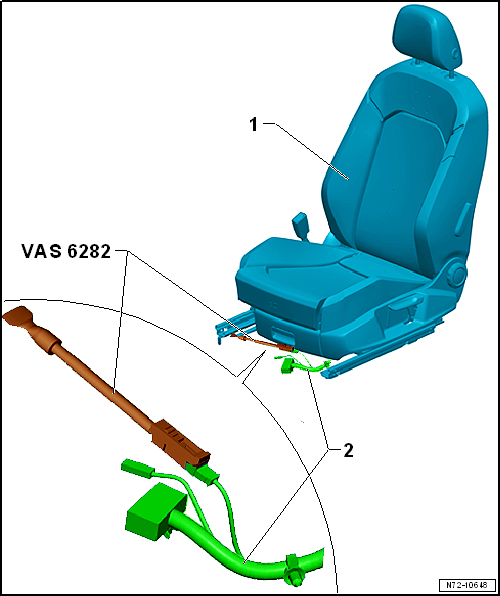

–  Connect airbag adapter -VAS 6282- to side airbag wiring harness -1-.
  Caution
Airbag adapter -VAS 6282- must remain connected to seat until seat is installed again.
