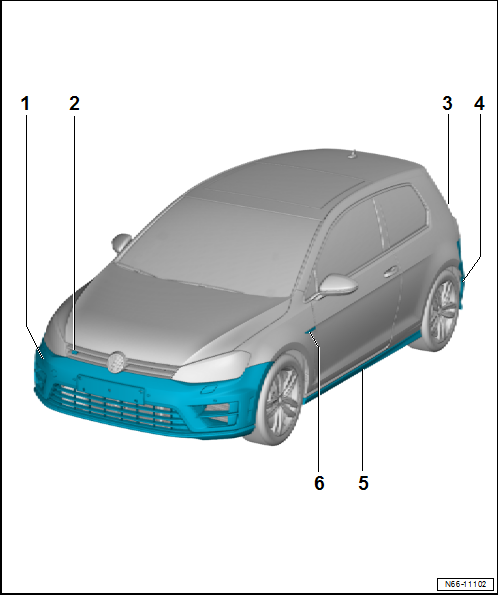

Volkswagen Golf Service & Repair Manual: Assembly overview – special add-on parts, “R”
| 1 - | Front bumper cover |
- “R” → Chapter
| 2 - | Emblems on radiator grille |
- “R” → Chapter
| 3 - | Rear lettering |
- “R” → Chapter
| 4 - | Rear bumper cover |
- “R” → Chapter
| 5 - | Side member extension |
- “R” → Chapter
| 6 - | Lettering on wing |
- “R” → Chapter
Assembly overview – special add-on parts, “R-Line”
1 -
Front bumper cover
“R Line”
→ Chapter
2 -
Emblems on radiator grille
“R Line”
→ Chapter
...
Towing bracket
...
