Volkswagen Golf Service & Repair Manual: Assembly overview - upper rear lid trim

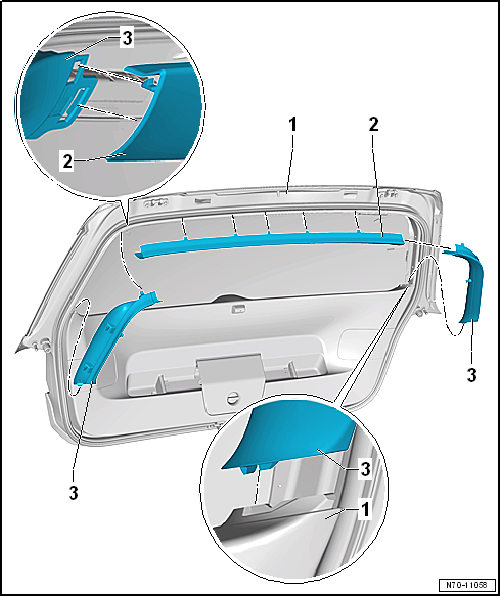

Assembly overview - upper rear lid trim

1 -  Rear lid with lower trim fitted
2 -  Centre window frame
3 -  Side window frame
Assembly overview - luggage compartment side trim, estate
  Note The illustration shows the luggage compartment side trim on the left side. The right-hand side is similar (mirror image of left-hand side). 1 -&n ...

Assembly overview - lower rear lid trim
1 -  Rear lid 2 -  Bolt Qty. 4 1.5 Nm 3 -  Lower rear lid trim Removing and installing →&nb ...
