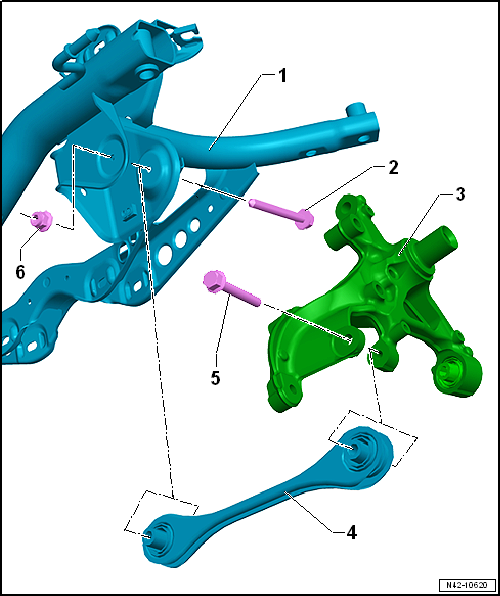

Assembly overview - track rod, multi-link suspension, front-wheel drive

1 -  Subframe
2 -  Bolt
Renew after removing
70 Nm +180°
3 -  Wheel bearing housing
4 -  Track rod
Removing and installing → Chapter
5 -  Bolt
Renew after removing
Always tighten threaded connections in unladen position → Chapter
70 Nm +180°
6 -  Nut
Renew after removing
Assembly overview - transverse link, multi-link suspension, four-wheel drive
1 -  Washer 2 -  Nut Renew after removing 3 -  Upper transverse link Removing and instal ...

Assembly overview - track rod, multi-link suspension, four-wheel drive
1 -  Subframe 2 -  Bolt Renew after removing 70 Nm +180° 3 -  Wheel bearing housin ...
